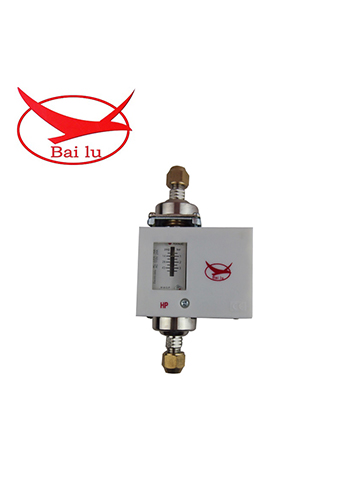

Adjustable Pressure Control

Name: Adjustable Pressure Control
Brand: Changzhou Egret Manufacturing Co., Ltd.

Egret LP series pressure control can protect compressors in refrigeration and air-condition plant, and keep them from over-low pressure or over-high suction pressure.

LP series pressure control can start and stop refrigeration compressors and fans of air condensers. It can be used not only in fluoride refrigeration, but also in air and liquid.

LP series pressure control are fitted with 3 kind of changeover switch: a single pole double throw (SPDT), a double pole single throw (DPDT) and a double pole double throw (DPDT). The position of the switch is determined by the pressure control setting and the pressure at the connector.

Inquire Now Pdf

egret

Specifications Features Process FAQ

Adjustable Pressure Control Specifications

Symbol	Model	Low pressure		High pressure		Reset		MAX.work pressure
Symbol	Model	Adjust range	Differential	Adjust range	Differential	L.P.	H.P.	L.P.
Low Pressure (L.P.)	LP2	0-0.2	0.04-0.1			Aut.		1.7
	LP3	-0.35	0.1-0.2			Aut.		1.7
	LP6M	-0.65	0.2Fixed			Man.		1.7
	LP6	-0.65	0.1-0.4			Aut.		1.7
	LP10	0.1-1.0	0.1-0.3			Aut.		1.7
	LP6W-12S	0-0.02	0.04-0.1			Aut.		1.7
	LP6W-12D	0.05-0.2	≦0.4			Aut.		1.7
	LP760	0~-0.1				Aut.		1.7
High pressure (H.P)	LP12D			0.2-1.2	0.1-0.4		Aut.		3.3
	LP16D			0.3-1.7	0.2-0.5		Aut.		3.3
	LP20D			0.4-2.0	0.2-0.5		Aut.		3.3
	LP30D			0.5-3.0	0.5-1.0		Aut.		3.3
	LP30			1.0-3.0	0.4Fixed		Aut.		3.3
	LP30M			0.5-3.0	0.4Fixed		Man.		3.3
	LP45L			1.0-4.5	0.4Fixed		Aut.		4.8
	LP45DL			1.0-4.5	0.5-1.5		Aut.		4.8
Dual pressure	LP830	-0.65	0.1-0.4	0.5-3.0	≦0.4 Fixed	Aut.	Aut.	1.7	3.3
	LP830HM	-0.65	0.1-0.4	0.5-3.0	≦0.4Fixed	Aut.	Man.	1.7	3.3
	LP830HLM	-0.65	0.4Fixed	0.5-3.0	≦0.4Fixed	Man.	Man.	1.7	3.3
	LP1245L	0.2-1.2	0.1-0.5	1.0-4.5	≦0.6Fixed	Aut.	Aut.	2.5	4.8
	LP1245LHM	0.2-1.2	0.1-0.5	1.0-4.5	≦0.6 Fixed	Aut.	Man.	2.5	4.8
	LP1245LHLM	0.2-1.2	≦0.5	1.0-4.5	≦0.6 Fixed	Man.	Man.	2.5	4.8

Features of Adjustable Pressure Control

Small size, various installation sizes
The microswitch is quick to cut off, and its performance is stable and reliable
Suitable for R22, R407C, R290, R134a
Waterproof grade is IP45
Pressure and differential pressure can be adjusted according to demand
The pressure controller is mainly composed of shell, air box, micro switch, spring, scale plate and other components.
Electrical Data: A.C. 220V 16A A.C. 110V 24A
Medium: R12, R22, R134a, R142b, R407c
Medium Temperature: -20℃～+120℃
Ambient Temperature: -20℃～+50℃
Maximum working pressure: low pressure pressure controller ≤ 1.7MPa, high pressure pressure controller ≤ 3.0Mpa
Installation direction: vertical installation

Products



Industrial Adhesive Tape

Aluminum Foil Tape

Pure Aluminum Foil Tape Laminate Aluminum Foil Tape Reinforced Aluminum Foil Tape FSK Tape Butyl Foil Tape Aluminum Foil Glass Cloth Tape

PET Tape

PET Blue Holding Tape

Foam Tape

Acrylic Foam Tape PU Foam Tape PE Foam Tape Spooled Foam Tape EPDM Foam Tape CR Foam Tape EVA Foam Tape NBR Foam Tape EPE Foam Tape Opsello Foam Tape Refrigerator Felt Pads

PE Tape

PE Stretch Film Polyethylene Tape White PE Protection Film Weather Seal PE Tape

Paper Tape

Masking Tape Kraft Paper Tape Double Sided Tissue Tape Drywall Joint Tape

Vinyl Tape

Non Adhesive PVC Tape PVC Pipe Wrap Tape Vinyl Electrical Tape

Cloth Tape

Duct Tape

PP Tape

MOPP Tape BOPP Tape PP Strapping Band

Fiberglass Tape

Mono Filament Tape Bi Directional Filament Tape Double Sided Scrim Tape

PO Film

PO Hot Melt Adhesive Film

Polyimide Tape

FAQ of Polyimide Tape



HVAC Parts

AC Pressure Switch

Auto Reset Pressure Switch Manual Reset Pressure Switch Adjustable Pressure Control

HVAC Solenoid Valve

FAQ of HVAC Solenoid Valve

Refrigeration Check Valve

FAQ of Refrigeration Check Valve

Refrigeration Ball Valve

FAQ of Refrigeration Ball Valve

AC Leak Detector

FAQ of AC Leak Detector

Solar Power Thermometer

FAQ of Solar Power Thermometer

Process of Adjustable Pressure Control Production

NO.1

First, we use turning lathe and CNC milling machine, to cutting and machining different size of copper male thread and nuts, springs, there are BSP 1/4 inch, NPT 1/8 inch etc.

NO.2

Second, use the mold to produce the plastic air box and shell, scale plate, micro switch.

NO.3

Third, silver soldering and laser welding, and then assembling the connection port to the air box, micro switch, scale plate, spring, and other components.

NO.4

Forth, encapsulate the whole parts with black plastic shell housing. Fifth, factory calibrating the different customized pressure setting.

NO.5

Finally, wiring, acid pickling, epoxy, and inspection.
