Butyl Foil Tape

Name: Butyl Foil Tape
Brand: Changzhou Egret Manufacturing Co., Ltd.

The aluminum foil attach with butyl rubber consists of backing. And coat with strong butyl mastic glue. The protected by white or blue LDPE liner. In particular, it is a perfect self-adhesive sealing tape. Especially, suitable for sunshine room roof or ceiling waterproof, to seal the gap of roof and windows, also can seal the pipes, and cars. Thus, it is an ideal tape for leak repair. Additionally, we guarantee 99% of the moisture leakage is applicable. While apply this tape, please ensure the surface is firm, clean and oil free.

Therefore, the tape is importance part in building & construction industries.

Inquire Now Pdf

egret

Specifications Features Process FAQ

Butyl Foil Tape Specifications

Product Characteristics	Performance Data	Test Method
Total Thickness	1000 mic（39.4 mil）	ASTM D1000
Foil Thickness	200 mic (7.9 mil)	ASTM D1000
Peel Adhesion	50 N/25mm (180 Oz/In)	PSTC-101/ASTM D3330
Tensile Strength	75 N/25mm (17 Lb/In)	ASTM D1000
Elongation at Break	800%	PSTC-131/ASTM D3759
VOC Content	＜1g/L
Service Temp.	-40 ~ 120℃（-40 ~ 248 °F）
Operating Temp.	0 ~ 40℃（32 ~ +104 °F）

Features of Butyl Foil Tape

Butyl rubber & aluminum laminated backing
Coated with aggressive butyl mastic adhesive
Protected by white or blue LDPE liner
With low VOC content
Excellent moisture and vapor resistance
Conform well to uneven surfaces
Quick dry and high adhesion
Efficient and quick repairs to roof and pipes

Products



Industrial Adhesive Tape

Aluminum Foil Tape

Pure Aluminum Foil Tape Laminate Aluminum Foil Tape Reinforced Aluminum Foil Tape FSK Tape Butyl Foil Tape Aluminum Foil Glass Cloth Tape

PET Tape

PET Blue Holding Tape

Foam Tape

Acrylic Foam Tape PU Foam Tape PE Foam Tape Spooled Foam Tape EPDM Foam Tape CR Foam Tape EVA Foam Tape NBR Foam Tape EPE Foam Tape Opsello Foam Tape Refrigerator Felt Pads

PE Tape

PE Stretch Film Polyethylene Tape White PE Protection Film Weather Seal PE Tape

Paper Tape

Masking Tape Kraft Paper Tape Double Sided Tissue Tape Drywall Joint Tape

Vinyl Tape

Non Adhesive PVC Tape PVC Pipe Wrap Tape Vinyl Electrical Tape

Cloth Tape

Duct Tape

PP Tape

MOPP Tape BOPP Tape PP Strapping Band

Fiberglass Tape

Mono Filament Tape Bi Directional Filament Tape Double Sided Scrim Tape

PO Film

PO Hot Melt Adhesive Film

Polyimide Tape

FAQ of Polyimide Tape



HVAC Parts

AC Pressure Switch

Auto Reset Pressure Switch Manual Reset Pressure Switch Adjustable Pressure Control

HVAC Solenoid Valve

FAQ of HVAC Solenoid Valve

Refrigeration Check Valve

FAQ of Refrigeration Check Valve

Refrigeration Ball Valve

FAQ of Refrigeration Ball Valve

AC Leak Detector

FAQ of AC Leak Detector

Solar Power Thermometer

FAQ of Solar Power Thermometer

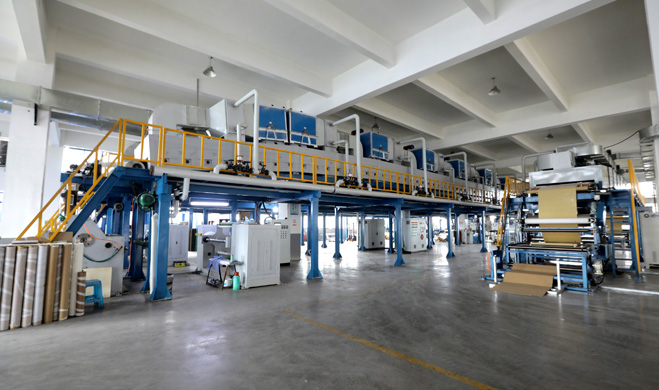

Process of Butyl Foil Tape Production

NO.1

First, we will use different thickness of dead soft pure aluminum foil or woven foil backing, then coat with high adhesion butyl rubber mastic adhesive. The total thickness can be 1mm, 1.5mm, 2mm, 3mm, etc.

NO.2

Second, we laminate the white or blue LDPE liner onto the backing material.

NO.3

Finally, we use our lathe slitting machines to cut the jumbo rolls to different standard or non standard width and length of small rolls.
