PO Hot Melt Adhesive Film

The main component of Po hot melt film is PO, which is called polyolefin in Chinese. It is known to include polyethylene and polypropylene. Polyethylene is tasteless, non-toxic, has low-temperature resistant, and good chemical resistance. It can be polarized by graft copolymerization with other acids, thus changing the bonding properties. Polypropylene is divided into isotactic polypropylene C, interacted polypropylene, and random polypropylene, and used for hot melt adhesive base material for random polypropylene.

The po film belongs to the medium melting point of hot melt film, melting point is about 110℃. PO hot melt film has high transparency, all models of products under it are relatively good low-temperature resistance, and high-temperature resistance is general.


egret

PO Hot Melt Adhesive Film Specifications

Product CharacteristicsPerformance DataTest Method
Color TransparentVisual
Total Thickness120 microns (4.8 mil)PSTC-133/ASTM D3652
Adhesion  29.4NPSTC-101/ASTM D3330
Bonding Pressure2-3 bar
Tensile Strength 8.39 MpaPSTC-131/ASTM D3759
Elongation at Break 300%PSTC-131/ASTM D3759
Melting Temp.99
Bonding Temp.110


Features of PO Hot Melt Adhesive Film

Features of PO Hot Melt Adhesive Film

  • Material: PO film

  • PO backing with high tensile strength

  • By heating & blow molding, formulate adhesive film

  • Excellent elongation & high tensile strength

  • Self-adhesive character, no need coating adhesive

  • Good aging & corrosion resistance for both indoor & outdoor use

  • Low moisture vapor transmission rate as an outstanding vapor barrier

  • Conform well to contours and irregular surfaces and bonds to most substrates

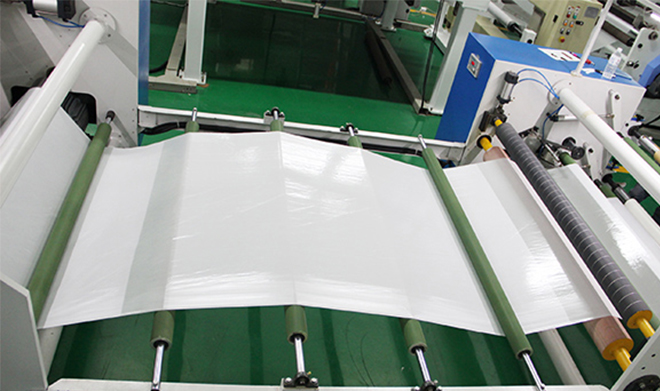

Process of PO Hot Melt Adhesive Film Production

Process of PO Hot Melt Adhesive Film Production
Process of PO Hot Melt Adhesive Film Production
NO.1

First step, melting the polyolefin material with very high temperature.


NO.2

Second step, formulating the PO to film shape with blow molding method.

NO.3

Third step, cooling


NO.4

Finally, we use our lathe slitting machines to cut the jumbo rolls to different standard or nonstandard width and length of small rolls. The jumbo size is 1200mmx1000m.


FAQ of PO Hot Melt Adhesive Film

FAQ of PO Hot Melt Adhesive Film

What is a PO hot melt adhesive film?

PO hot melt adhesive film is polyolefin material.


01

What is PO hot melt adhesive film used for?

Bonding plastic to metal, or other material mutual bonding


02

Is the PO hot melt adhesive film adhesion strong?

Sure, it can bond evaporator to aluminum tube


03

What color of PE protection film do you have?

We have transparent color
