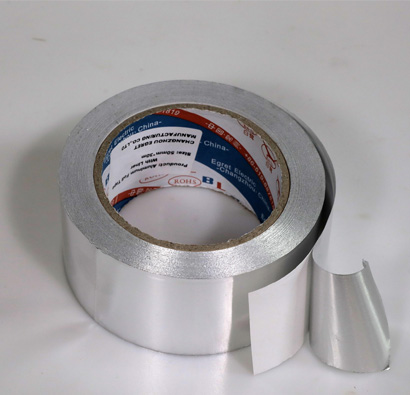

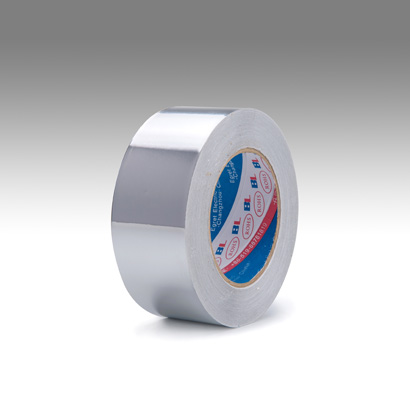

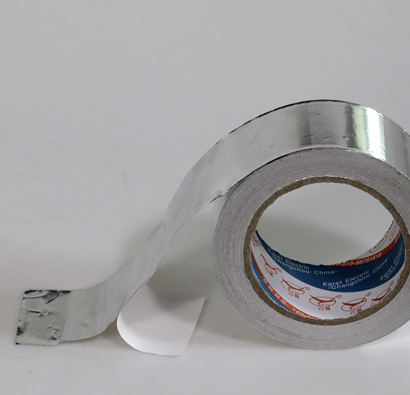

Pure Aluminum Foil Tape

Name: Pure Aluminum Foil Tape
Brand: Changzhou Egret Manufacturing Co., Ltd.

Egret so-called plain or pure al tape, is the most popular and widely used type.

And it can divide mainly into 2 types. One is self-wound or without liner, the other is with liner. In the case of no liner, it can reduce cost. And it is suitable for machine use. On the other hand, with liner is suitable for man use. And coat with aggressive solvent or water based acrylic adhesive. Especially, easy tear and easy operate. Moreover, the tape provides flame retardant or high temperature resistant properties.

As well as cold weather or low temperature resistant. The application for this tape is mainly used for refrigerator cooling tube attachment.

Inquire Now Pdf

egret

Specifications Features Process Material FAQ

Pure Aluminum Foil Tape Specifications

Product Characteristics	Performance Data	Test Method
Foil Thickness	40 microns (1.6 mil)	PSTC-133/ASTM D3652
Total Thickness	80 microns (3.2 mil)	PSTC-133/ASTM D3652
Peel Adhesion	15 N/25mm (54 Oz/In)	PSTC-101/ASTM D3330
Rolling Ball Tack	5 cm (2.0 Inch)	PSTC-6/ASTM D3121
Tensile Strength	55 N/25mm (10.5 Lb/In)	PSTC-131/ASTM D3759
Elongation	3.00%	PSTC-131/ASTM D3759
Service Temp.	-30 ~ +120℃（-22 ~ +248 °F）
Operating Temp.	+10 ~ 40℃ （+50 ~ +105 °F）
Urethane Foam Bonding Rate	≥80%	ASTM D3167

Features of Pure Aluminum Foil Tape

Dead soft aluminum foil backing with high tensile strength
Without paper liner to save cost and protect environment
Aluminum back coated with easy release agent
Coated with aggressive formula emulsion acrylic adhesive
With high convective heat transfer coefficient, maximizing cooling efficiency
Provide an effective barrier to moisture, air and corrosion
Multi-surface grip features, can conform the evaporator coil/cooling tube easily
Conform well to contours and irregular surfaces and bonds to most substrates
Can be cleanly and easily removed from most surfaces, without any residue

Products



Industrial Adhesive Tape

Aluminum Foil Tape

Pure Aluminum Foil Tape Laminate Aluminum Foil Tape Reinforced Aluminum Foil Tape FSK Tape Butyl Foil Tape Aluminum Foil Glass Cloth Tape

PET Tape

PET Blue Holding Tape

Foam Tape

Acrylic Foam Tape PU Foam Tape PE Foam Tape Spooled Foam Tape EPDM Foam Tape CR Foam Tape EVA Foam Tape NBR Foam Tape EPE Foam Tape Opsello Foam Tape Refrigerator Felt Pads

PE Tape

PE Stretch Film Polyethylene Tape White PE Protection Film Weather Seal PE Tape

Paper Tape

Masking Tape Kraft Paper Tape Double Sided Tissue Tape Drywall Joint Tape

Vinyl Tape

Non Adhesive PVC Tape PVC Pipe Wrap Tape Vinyl Electrical Tape

Cloth Tape

Duct Tape

PP Tape

MOPP Tape BOPP Tape PP Strapping Band

Fiberglass Tape

Mono Filament Tape Bi Directional Filament Tape Double Sided Scrim Tape

PO Film

PO Hot Melt Adhesive Film

Polyimide Tape

FAQ of Polyimide Tape



HVAC Parts

AC Pressure Switch

Auto Reset Pressure Switch Manual Reset Pressure Switch Adjustable Pressure Control

HVAC Solenoid Valve

FAQ of HVAC Solenoid Valve

Refrigeration Check Valve

FAQ of Refrigeration Check Valve

Refrigeration Ball Valve

FAQ of Refrigeration Ball Valve

AC Leak Detector

FAQ of AC Leak Detector

Solar Power Thermometer

FAQ of Solar Power Thermometer

Process of Pure Aluminum Foil Tape Production

NO.1

First, we will choose 18 mic to 75 mic thickness pure aluminum, for nonstandard thickness can be up to 150 micron.

NO.2

Second, we coat with very high bond solvent based or water based acrylic adhesives, natural rubber or synthetic rubber, hot melt adhesive on the basing material by our glue coating lines. To ensure high foam bonding rate, we also coat special silicone on the back side of material.

NO.3

Third, we laminate the liner on the aluminum, no liner is also available.

NO.4

Finally, we use our lathe slitting machines to cut the jumbo rolls to different standard or nonstandard width and length of small rolls.

The Green Material of Egret's Pure Aluminum Foil Tape

We are highly focused on environmental protection during manufacturing pure aluminum foil tape.

From sourcing material, we adopt odorless pure aluminum, without any poisonous metals, approved by reach and rohs report, ISO 14001. All production departments are equipped with low energy consumption systems and automatic safety and control devices for utmost respect of the environment. We also use water solubility glues, will have no pollution to rivers. All wastage water is collected in special container and send to wastage water treatment factory. All wastage gas is discharge strictly according to local government laws. We spend high money to install special and advanced equipment to collect and discharge wastage water and gas.
