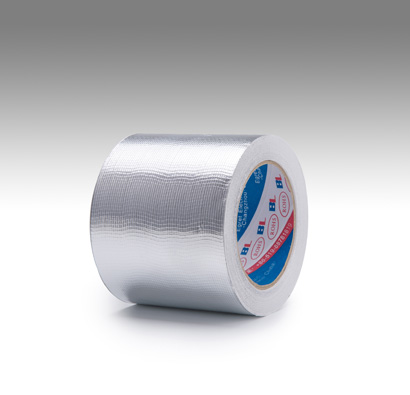

Reinforced Aluminum Foil Tape

Name: Reinforced Aluminum Foil Tape
Brand: Changzhou Egret Manufacturing Co., Ltd.

Polyethylene fiber mesh laminated with foil is very popular in HVAC industry. It can used for wrapping the air ducts and laminating the glass wool or rock wool thermal insulation, duct board joints applications. It can be either easy tear or hard tear as per customers requirements. In the meantime, it has very good flame resistance.

Plus, it is one of the strongest tapes among al tape. Notably, it attaches well to rigid & flexible air ducts. Also, it is perfect vapor sealing for fiberglass facing joints. In addition, we have either easy tear or hard tear. As a result, it can meet with your variable requirements.

Inquire Now Pdf

egret

Specifications Features Process FAQ

Reinforced Aluminum Foil Tape Specifications

Product Characteristics	Performance Data	Test Method
PE-FOIL Thickness	120 microns (4.8 mil)	PSTC-133/ASTM D3652
Adhesive Thickness	60 microns (2.4 mil)	PSTC-133/ASTM D3652
Peel Adhesion	23.5 N/25mm (84.6 Oz/In)	PSTC-101/ASTM D3330
Static Shear	≥24 Hours	PSTC-107/ASTM D3654
Tensile Strength	90 N/25mm (20.5 Lb/In)	PSTC-131/ASTM D3759
Elongation at Break	30.00%	PSTC-131/ASTM D3759
Service Temp.	-20 ~ +80℃（-4 ~ +176 °F）
Operating Temp.	+10 ~ +40℃（+50 ~ +105 °F）

Features of Reinforced Aluminum Foil Tape

4.8 mil (120 micron) Foil-PE mesh backing with high tensile strength
Coated with aggressive synthetic rubber/resin adhesive
Also, solvent based acrylic adhesive is another choice
Different facing/backing patterns, diagonal, square grid, etc.
Extremely easy for hand-tear, easy-used by workers
Tear cleanly without loose thread hanging off the end
Excellent resistance to moisture and vapor
Combination of baking material ensures high flexibility and conformability
Can be either easy hand-tear or tear-resistance, according to customer requirement

Products



Industrial Adhesive Tape

Aluminum Foil Tape

Pure Aluminum Foil Tape Laminate Aluminum Foil Tape Reinforced Aluminum Foil Tape FSK Tape Butyl Foil Tape Aluminum Foil Glass Cloth Tape

PET Tape

PET Blue Holding Tape

Foam Tape

Acrylic Foam Tape PU Foam Tape PE Foam Tape Spooled Foam Tape EPDM Foam Tape CR Foam Tape EVA Foam Tape NBR Foam Tape EPE Foam Tape Opsello Foam Tape Refrigerator Felt Pads

PE Tape

PE Stretch Film Polyethylene Tape White PE Protection Film Weather Seal PE Tape

Paper Tape

Masking Tape Kraft Paper Tape Double Sided Tissue Tape Drywall Joint Tape

Vinyl Tape

Non Adhesive PVC Tape PVC Pipe Wrap Tape Vinyl Electrical Tape

Cloth Tape

Duct Tape

PP Tape

MOPP Tape BOPP Tape PP Strapping Band

Fiberglass Tape

Mono Filament Tape Bi Directional Filament Tape Double Sided Scrim Tape

PO Film

PO Hot Melt Adhesive Film

Polyimide Tape

FAQ of Polyimide Tape



HVAC Parts

AC Pressure Switch

Auto Reset Pressure Switch Manual Reset Pressure Switch Adjustable Pressure Control

HVAC Solenoid Valve

FAQ of HVAC Solenoid Valve

Refrigeration Check Valve

FAQ of Refrigeration Check Valve

Refrigeration Ball Valve

FAQ of Refrigeration Ball Valve

AC Leak Detector

FAQ of AC Leak Detector

Solar Power Thermometer

FAQ of Solar Power Thermometer

Process of Reinforced Aluminum Foil Tape Production

NO.1

First, we weave the PE fiber mesh to different patterns. Then, laminate the PE mesh onto the aluminum foil. This process can enhance the tensile strength. There are different facing materials. Such as heat sealing foil scrim facing, Metalized PET foil scrim, glass cloth foil, double sided foil with kraft in between, etc. These materials are called reinforced aluminum foil.

NO.2

Second, we coat with very high bond solvent based, natural rubber or synthetic rubber, hot melt adhesive on the basing material by our glue coating lines.

NO.3

Finally, we use our lathe slitting machines to cut the jumbo rolls to different standard or nonstandard width and length of small rolls.
